Bio Sentry ETH

Its fingerprint time attendance system work on local system as well Web/web system. Accommodate employee strength from 50 to 5000 users. It’s available in compact/slim metal body, IP65 (ABS).

BENEFITS

• TCP/IP or Internet connectivity.
• Real time data capture less than 1.5 Sec.
• Real-time downloading available.
• Works in online as well as offline mode (inbuilt storage).
• Easy to install and use.
• Reliable and accurate.
• Low maintenance cost.
• Proprietary algorithms for dry, oily and cut and Mehendi clad fingers.
• Attendance data storage capacity up to 50000 transactions.
• With or without battery backup.

TECHNICAL SPECIFICATION

DESCRIPTION	SPECIFICATION
Fingerprint Sensor:
Resolution	500 DPI with 14 x 22 mm Sensor array
Scanner	Optical
Matching	1:N
Identification Speed	<1.5 Seconds(1:N)
False Acceptance Rate(FAR)	0.00%
False Rejection Rate(FRR)	0.00%
Image Quality	Distortion Free Images
	Resistance to Various
	Contaminants like Sweat,Dirt & Wet Finger
Human Interface:
Display	16 Characters 2 Lines Monochrome LCD Display , with Activity LEDs
Audio	Beeper with 5Khz Frequency
Key Board	13 Capacitive Touch Keys with Separate IN & Out Keys
Connectivity	TCP/IP
AC Input	230VAC 50 Hz
Storage:
Enrolled Data	Up to 500 / 3000 / 5000 user with two fingers each.
Transaction Data	Up to 16000 / 50000 records.(non Volatile Flash memory)
Environment:
Temperature Range	0°C to 60°C (Storage) 5°C to 50°C (Operating)
Electrical Protection	Protection from High Volt Surges, Lightning by use of special equipments.
Humidity	Under 90% RH
Dimensions	150 MM X 200 MM X 80 MM
Weight	2.00 Kg

Smart Sentry ETH

It’s an RFID smart card based attendance system work on local system as well Web/ web system. For infinite employee strength. It’s available in slim metal, Aluminium(ELPH) and ABS (IP65). Mifare 1K/4K smart cards.

BENEFITS

• TCP/IP or Internet connectivity.
• Real-time downloading available.
• The card can be detected within the range of 4 cm.
• Real Time data capture within 1 second.
• Cards with or without printing.

TECHNICAL SPECIFICATION

DESCRIPTION	SPECIFICATION
Human Interface:
Display	16 Characters 2 Lines Monochrome LCD Display , with Activity LEDs
Audio	Beeper with 5Khz Frequency
Key Board	13 Capacitive Touch Keys with Separate IN & Out Keys
Connectivity	TCP/IP
AC Input	230VAC 50 Hz
Storage:
Enrolled Data	Up to 500 / 3000 / 5000 user with two fingers each.
Transaction Data	Up to 16000 / 50000 records.(non Volatile Flash memory)
Environment:
Temperature Range	0°C to 60°C (Storage) 5°C to 50°C (Operating)
Electrical Protection	Protection from High Volt Surges, Lightning by use of special equipments.
Humidity	Under 90% RH
Dimensions	150 MM X 200 MM X 80 MM
Weight	2.00 Kg

Super Sentry ETH

It’s a combination of fingerprint and smart card attendance system can be used together or separately. It’s available in slim metal, Aluminium(ELPH) and ABS(IP65). Optical Sagem-Morpho sensor.

BENEFITS

• TCP/IP or Internet connectivity.
• Real-time downloading available.
• Dual-security system.
• All features and benefits of Bio-Sentry are added.
• with or without battery backup

TECHNICAL SPECIFICATION

DESCRIPTION	SPECIFICATION
Fingerprint Sensor:
Resolution	500 DPI with 14 x 22 mm Sensor array
Scanner	Optical
Matching	1:N
Identification Speed	<1.5 Seconds(1:N)
False Acceptance Rate(FAR)	0.00%
False Rejection Rate(FRR)	0.00%
Image Quality	Distortion Free Images
	Resistance to Various
	Contaminants like Sweat,Dirt & Wet Finger
Human Interface:
Display	16 Characters 2 Lines Monochrome LCD Display , with Activity LEDs
Audio	Beeper with 5Khz Frequency
Key Board	13 Capacitive Touch Keys with Separate IN & Out Keys
Connectivity	TCP/IP
AC Input	230VAC 50 Hz
Storage:
Enrolled Data	Up to 500 / 3000 / 5000 user with two fingers each.
Transaction Data	Up to 16000 / 50000 records.(non Volatile Flash memory)
Environment:
Temperature Range	0°C to 60°C (Storage) 5°C to 50°C (Operating)
Electrical Protection	Protection from High Volt Surges, Lightning by use of special equipments.
Humidity	Under 90% RH
Dimensions	150 MM X 200 MM X 80 MM
Weight	2.00 Kg

GPRS facility available for Bio sentry as well as super sentry systems. SIM Card based connectivity. Compatible with all types of GSM SIM Cards. Specially designed to install at remote places.

BENEFITS

• GPRS based wireless connectivity.
• Real time data capture less than 1.5 Sec.
• Real-time downloading available.
• Works in online as well as offline mode (inbuilt storage).
• Easy to install and use.
• Reliable and accurate.
• Low maintenance cost.
• Proprietary algorithms for dry, oily and cut and Mehendi Webed fingers.
• Attendance data storage capacity up to 50000 transactions.
• With or without battery backup.
• Super sentry system with dual Security system.

TECHNICAL SPECIFICATION

DESCRIPTION	SPECIFICATION
Fingerprint Sensor:
Resolution	500 DPI with 14 x 22 mm Sensor array
Scanner	Optical
Matching	1:N
Identification Speed	<1.5 Seconds(1:N)
False Acceptance Rate(FAR)	0.00%
False Rejection Rate(FRR)	0.00%
Image Quality	Distortion Free Images
	Resistance to Various
	Contaminants like Sweat,Dirt & Wet Finger
Human Interface:
Display	16 Characters 2 Lines Monochrome LCD Display , with Activity LEDs
Audio	Beeper with 5Khz Frequency
Key Board	13 Capacitive Touch Keys with Separate IN & Out Keys
Connectivity	TCP/IP
AC Input	230VAC 50 Hz
Storage:
Enrolled Data	Up to 500 / 3000 / 5000 user with two fingers each.
Transaction Data	Up to 16000 / 50000 records.(non Volatile Flash memory)
Environment:
Temperature Range	0°C to 60°C (Storage) 5°C to 50°C (Operating)
Electrical Protection	Protection from High Volt Surges, Lightning by use of special equipments.
Humidity	Under 90% RH
Dimensions	150 MM X 200 MM X 80 MM
Weight	2.00 Kg

This multi-functional fingerprint solution which significantly reduces the threat of data theft by securing access to your PC, locking files, and providing secure password management.

Have you ever stopped to wonder just how much sensitive information resides on your computer? Or how often you use it to perform an online transaction? Or what functions your colleagues are carrying out when you're not around?

For many, the computer has become an indispensable way of life at work and at home. However, inadequate means of computer protection can have serious consequences. Identity fraud, online predators, and careless password management put your data at risk.

We at WYSE understands your concern and have developed a Unique solution of Biometric PC logon using BioSentry XS USB based fingerprint device.

Biometric Virtual drives Protection

Apart from controlling and monitoring the boot log on process, Biosentry XS continues to be effective after complete boot, by offering yet another feature “Biosentry Vault”. This Vault is a virtual disk and can have a variable space of 1 MB to 99 GB, which is mounted upon positive authentication of the user. You can have multiple virtual drives on the system. This implies that, no one will be able to open a particular user vault unless authenticated by fingerprint. This feature makes Biosentry unique in its class, which tackles almost all threats and attacks.

Active Directory Integration

Bio sentry PC Logon can work on Active Directory environment, with single or Two Tier Architecture,with active directory implementation and login to each PC can be controlled centrally. Administration can enable or disable any user from Active Directory.

Emergency Admin Login

In case of emergency, administrators can login to the PC by using the Admin Hardware Lock. This help’s administrator to get important information when user is not available. A record of such log in is saved in the database with details lock information.

Third Party Software Integration

Third party software integration available on demand such as integration for net banking, core banking, software authentication, etc.

Your existing attendance system can be integrated with the help of potential free relay access control contacts. There are some other control offers exit switch and door sensing signals, etc. Access will be managed to electromagnetic latch, electric strike.

The purpose of BioSentry WiFi is to provide access control functionality for commercial as well as residential use. This device is the best way to safeguard your home, shops, office and in any location where the user requires secure gateway. User can connect to the device over WiFi. The device is configured on the go and the best part is user can access the device using any WiFi enabled device.

How Bio Sentry WiFi Access control works?

Bio Sentry WiFi comes with latch control mechanism, when an authorized user gives fingerprint on the device the latch will open. The user can take enrollment on the device, add or remove users from the device. The device works in online and offline mode. Bio Sentry WiFi provides the following User Interface on the device

1.Device sensor: User has to put the finger on the sensor to give the fingerprint

2.LED notification: To show the status of the device

3.Buzzer notification: Audio notification to user

4.Proximity Key Sensor.

TECHNICAL SPECIFICATION

DESCRIPTION	SPECIFICATION
Fingerprint Sensor:
Resolution	500 DPI with 14 x 22 mm Sensor array
Scanner	Optical
Matching	1:N
Identification Speed	<1.5 Seconds(1:N)
False Acceptance Rate(FAR)	0.00%
False Rejection Rate(FRR)	0.00%
Image Quality	Distortion Free Images
	Resistance to Various
	Contaminants like Sweat,Dirt & Wet Finger
Human Interface:
Audio	Beeper with 5Khz Frequency
Keys	Capacitive Touch Keys for IN & Out.
Connectivity	WiFi connectivity, Integrated 2.4GHz, IEEE 802.11b/g compatible, range up to 300m (984 ft.), Supports 802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES(WPA2-PSK) in Station mode WEP-64128 in SAP mode.
Supply Input	DC 5V
Storage:
Enrolled Data	Up to 500 / 3000 / 5000 user with two fingers each.
Transaction Data	Up to 16000 records.
Environment:
Temperature Range	0°C to 60°C (Storage) 5°C to 50°C (Operating)
Electrical Protection	Protection from High Volt Surges, Lightning by use of special equipments.
Humidity	Under 90% RH
Dimensions	118.50 MM X 76.50 MM X 32.00 MM
Weight	0.130 Kg

It is always “wise” solution to invest in the protection of software piracy than its treatment of recovering billions of dollars annually, productivity & recourses.

With this concern, Wyse developed Sentry hardware lock, a perfect solution for software developers who are worried about growing piracy & revenue drain.

The sentry hardware lock is supported with the APIs designed for all 32 bit and 64 bit OS platform. It is therefore necessary to incorporate these API calls provided in the application. These API calls are in the form of a DLL / LIB. Depending on the response from the hardware lock, you will have to navigate the program accordingly.

Sentry Hardware cLock (Real Time Clock) breaks this deadlock of software pirates and gives you the most reliable solution to protect your DEMO software and allows you to rent / lease software without any kind of worries.

Sentry Timer Lock gives you the option of storing the date, months and year which allows you to distribute the software with pre-defined usage. It has built in Real Time Clock with battery backup, which is independent of the PC Clock and can be successfully used to protect any real time applications, which are prone to attacks.

It is also available in both standalone & network format.

SDK is available for integration with Windows, Linux and Android platforms.

• Sentry Standalone
• Sentry Network
• Sentry RTC
• Sentry Secure

1. MSO 1300/ MSO 1300 E2

2. MSO 1350/ MSO 1350 E2

It is a USB based fingerprint recognition device which has the capability of scanning, storing and matching the fingerprint on the device itself. They use Morpho’s patented optical technology and fingerprint an algorithm which offers superior image quality. They are capable of not only producing fingerprint images, but also processing them internally, running powerful algorithms directly on their embedded processor.

TECHNICAL SPECIFICATION

DESCRIPTION	SPECIFICATION
Interface	USB
Integrated Database	500 Users(Upgradable to 3000 or 5000 with License)
Resolution	500 DPI with 14 x 22 mm Sensor array
Scanner	Optical
Matching	1:N
Identification Speed	<1.5 Seconds
False Acceptance Rate(FAR)	0.00%
False Rejection Rate(FRR)	0.00%
Image Quality	Distortion Free Images
	Resistance to Various
	Contaminants like Sweat,Dirt & Wet Finger

FEATURES:

1. Image compression using a WSQ algorithm from FBI/NIST.
2. Internal database storage: Up to 10,000 templates.
3. Capability of addressing juvenile fingers.
4. An anti latency feature detects fingerprint traces reactivated under certain lighting conditions.
5. Enhance image quality.
6. Fake finger detection.
7. Availability of match-on-card MSO1350/ MSO1350 E2.

Web based Time Attendance Software, which is hosted on WYSE server. Being a Web based software, user can operate it from anywhere in world. So now Director or CEO can know Attendance of staff from anywhere in world on the go. It is also available in form of a mobile application, which can work on any Android Phone. Integration with any existing HRMS software, tightly coupled with elms and Payroll, thus giving punch to pays lip solution in one go. Hundreds of satisfied clients of team rely on the logic and lots of reports Available in the software.

Features:

1. Automatic Shift Assignments.
2. Night shift handling(Multiple Shifts).
3. Multi Lingual.
4. Employee inside premises/Fire report .
5. Customized Reports in Express and Live mode.
6. Employee transfers cases.
7. Graphical Management console(Dash Board/Charts).
8. Role based User creation/rights/privileges management.
9. Data security with change password facility.
10. Transaction edit facility for HR.
11. Policy Allotment as Variable weekly off/ full day/half day.
12. Transaction import facility.
13. Book a ticket facility (to track and solve user ETAM related issues).

Reports:

1. • Summary
2. • Muster
3. • Time Attendance (FILO)
4. • Multiple Punches in a day
5. • Shift wise Employee summary
6. • Late,Early go,Overtime Report

eLMS is a smart online leave management system that allows users to apply for their leave conveniently anytime anywhere.

It is designed for online leave application and routing it to specific approving authority. It provides approving capabilities and to make every leave application a total breeze for both, leave applicant and leave approvers.

It allows defining your leaves and leave rules as per the leave policy of the organization.

System design is completely role based. Roles can be eLMS Super User (Administrator), General employee, Reporting Officer (RO) , Human Resource Manager (HR) and HR Assisting Users. Each of these roles has got specific functionalities as defined.

Features:

1. Easy creation and management of leave administration including Employee login, reporting officer, hierarchy management and leave policy creation.
2. User Friendly Employee Self Service (ESS) like Leave Application, Balance check, report check, etc.
3. Leave card is available to HR for each employee.
4. Automatic processed leave facility at the end of year.
5. Convenient operations for Reporting officers and managers to Approve/Reject leaves and keep track of employee count while approving leave, track staff attendance and leave balance.
6. Paper-LESS and Hassle free Solution.
7. Easy tracking, recording and evaluation of employee leave and attendance details.
8. Detailed Leave Card Generation for HR per employee.
9. Automatic Leave Processing at Year End.
10. Easy Management of Leave balances, Accrual, Leave Encashment, etc.

Reports:

1. 1. Leave Card Report
2. 2. View RO wise Pending Leave List
3. 3. Self-Leave Balance
4. 4. Employee List
5. 5. Employee Leave Balance
6. 6. Employee Leave status
7. 7. RO wise Employee Leave Balance
8. 8. View Leave Details
9. 9. Leave balance Update

In a company, payroll is the sum of all financial records of salaries for an employee, wages, bonuses and deductions. In accounting, payroll refers to the amount paid to employees for services they provided during a certain period of time. ETAM Payroll is a cloud based complete web solution to securely deliver a high performance, Secure and reliable payroll with human resource management.

Features:

1. ETAM output as number of hours and days worked for a specific period will be used as input to Payroll system.
2. Value / Formula / Slab based payroll configurations and calculations.
3. Unique Expression builders (Calculators) for entry of accurate formulas or slabs for evaluating at the time of payroll processing.
4. Completely customisable as per requirement of client.
5. Pay Configuration of individual or batch of employees for quick data entry.
6. Library of standard reports.
7. Get salaries out in just minutes instead of days!

Various Establishments like Corporates,Hostels,Schools,Hospitals often Support their own Canteen.

Organizations with large numbers of employees cannot handle a canteen with manual processes. They need a centralized canteen management system that promotes efficient operations to cover a large organizational workforce. The canteens in an organizations are prone to pilferages on the benefits given to the legitimate employees, and here our fool proof system and authentication mechanisms, arrests such fraudulent and impersonation efforts, which results in proper benefits to employees and savings to the employer.

WYSE designed ETAM Canteen Module to provide a user friendly system that facilitates quick and efficient operations to cover larger section of employees within a specified time. This system is also compatible in an environment where multiple canteens operated within one organization. The Administrators of the system can fully control access and benefits to the employees by assigning into the Smart Card.

Key Features of ETAM Canteen Module:

1. Employee and Employer and canteen contractor friendly Process.
2. Real time data available.
3. Special rules for Time Zones and regulation can also integrated within existing system.
4. Detailed report on daily/weekly/monthly/Yearly basis.
5. Manual entry for Visitors/Guest of transaction is available.
6. VIP card facility allows access to all the meals and all canteens.
7. Reports generated can be views by multiple stake holders over the browser.

Benefits of ETAM Canteen Module:

1. Prevent Food Wastage.
2. Secure and Speedy Transaction.
3. Eliminate Human error in accounting.
4. Easy to integrate with Company’s existing ID card system.
5. Easy Report with all criteria combination.
6. Maintain and generate report of Individual employee/Canteen/Department at Daily/Weekly/Monthly/Yearly basis.

Bio Sentry VMS, is not a simple visitor printing pass system, which merely gives you a “Photo Pass” that gives an illusion of automation, which simply put, is just an eyewash…isn’t it?

We talk of Visitor Management not just to provide a print “Photo Pass”, rather it is just a beginning in our System – It mounts layers of security credentials,and get coupled seamlessly with whole range of our in-house developed smart card and Biometric Access Control devices. The whole process runs in real time network, where the console constantly updates the machines on the whereabouts and access rights of the visitors.
VISITOR REGISTRATION
Visitor will be registered by Entering First Name, Last Name and Organization Name. Visitor Registration can be manual or can Scan Visitor Card by Card Scanner. Visitor Photo Capture. Option of Capturing Visitor’s Fingerprint. Option of Capturing Visitor’s Signature. Option of Scanning Bar code of Visitors belonging like laptop, Camera etc.
VISITOR AUTHORISATION
Visitor’s details would flash on that particular authorized employee’s computer. Visitor can enter the premises only if that concerned employee permits visit of a Visitors. If an employee is busy in a meeting and postpones the visit, security would take the action. If an employee is on leave/out of office, security would stop visitor at gate.
VISITOR PASS CREATION
BioSentry VMS gives an option to produce paper pass on the spot. It carries information like name, Name of organization, contacts, Visitor’s ID, Pass Validity, Photographs etc.
VISITOR ACCESS CONTROL
BioSentry VMS has the facility to provide fingerprint and card based access to each Visitor. Moreover administrator can assign different access rights to each visitor to ensure that they can access permitted zones only. This will improve security without increasing complexity.
FREQUENT VISITORS
Some people such as courier boys, bank officials and other personnel visit the organization regularly. VMS keeps a database of past visitors so that security need not enter the same user details every time and can get information directly from database.
BLOCKED VISITORS
With this utility administrator can block any visitor and deny their access to the facility. Blocked Visitor List is helpful at the time of new visitor Pass creation by checking whether visitor is blocked or not and create pass accordingly.
REPORTS
Daily Report. Monthly Report. Frequent Visitor Report. Department Wise Report. Visitor Wise Report. Company Wise Report. Visitor Tracking Report. Visitor Inside Premises

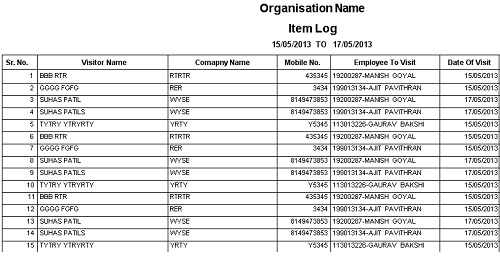

SAMPLE REPORTS

There are two elements which are vital in this process, firstly the person and secondly the weapon. To make automation, both these elements must be uniquely defined. A fingerprint based biometrics is used to achieve the assignment and identification of a person, while the non-living object, a weapon, is assigned an RFID tag, with a given unique number. Although the unique number of a weapon is the manufacturer’s registration and shall be a primary key. Like a person has been given attributes such as service number, rank, identity card number, etc. a weapon is assigned useful attributes such as weapon name, butt number, usage etc.

This system is divided in five parts:

1. 1. Registration of weapons and RFID Mapping
2. 2. Fingerprint Registration
3. 3. Issuance of Weapons
4. 4. Submission of Weapons
5. 5. RFID Reader to Track weapons

KEY FEATURES

Smart Phone to Authenticate the Attendance:

Today, Smart phones have revolutionized the way we carry out our day activities. Do you remember the last time you searched the telephone directory or used your walkman to listen to some music? Our smart phone is our calculator, calendar, radio, walkman, road guide, diary, notepad etc all rolled into one. So don’t you think its time for marking and viewing our office attendance also using our smart phone??

Precisely for this reason, we introduce our new app, “Smart Muster” which will help you do this. Using this app, the office staff can record their attendance at the work place using their smart phones. Managers can see the attendance record of all the employees with geo location, date and time details and at the same time the individual staff can also view their own attendance records on their mobile phones.

“Smart Muster” is a mobile application which can reside on any smart phone, having the popular operating systems and is connected strongly, coupled with our well proven cloud based attendance platform ETAM, which is being used by hundreds of customers with thousands of employees across India and abroad.

21,22 & 23 April 2016 - Secutech India 2016

WYSE Biometrics Systems take part in an exhibition of Secutech India 2016, i.e. "Secutech India" The 5th International Exhibition & Conference for Electronic Security.

22,23 & 24 September 2015 - SmartCards Expo 2015

WYSE Biometrics Systems take part in an exhibition of SmartCard Expo 2015, i.e. 17th International Conference and Exhibition of Smart Card Technology and Applications.

July 3, 2015- Mr. Y.D. Wadaskar( M.D of WYSE Biometric System Pvt. Ltd.), presented a speech on IOT at NASSCOM Product Conclave.

Mr. Wadaskar would like to thank the organizers of the seminar for inviting him to this event. According to him that was very interactive session.

April 2014 - 24th Comex Expo 2014

WYSE Biometrics Systems take part in an exhibition of Comex 2014 at Muscat, OMAN.
